Multi-Protocol HF Reader IC with low power card detection mode
$1.77 – $70.00
Shipping: Approximatrly 30-45 days From Silicon Craft Technology, Thailand
RA12
Multi-Protocol HF Reader IC with low power card detection mode
Support ISO14443A/B and ISO15693. Consume only 4.7 Ī¼A in card detection mode

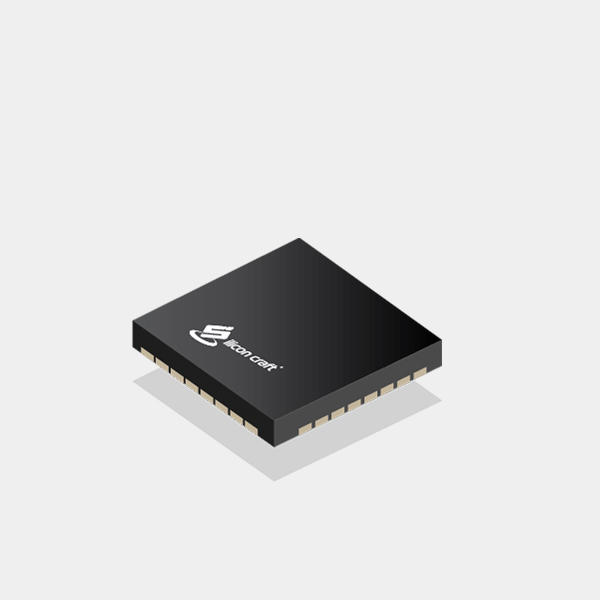

RA12 is a single-chip reader designed for RFID communication at 13.56MHz. The chip support ISO14443A, ISO14443B, and ISO15693 with a 64-byte send and receive FIFO-buffer. Key features include Low Power Card Detection mode and External RF Field Detection mode. The RA12 reader offers hi-speed SPI communication up to 10Mbps, on-chip 3.3V regulators to stabilize power supply for both the chip and external companions, and a low power consumption mode to optimize energy usage.
Highlight Features
- Low Power Card Detection
- External RF Field Detection
- Support ISO14443A/B, all bit rates
- Support ISO15693, all modes
- Modulation index adjustable by software
- Maximum driving current up to 250mA @5V T_VDD
- Output impedance 3Ohms @5V T_VDD
- Wide operating voltage for Tx from 2.7V to 5.5V
Interface and Peripheral
- SPI Interface up to 10Mbps
- 64-byte send and receive FIFO-buffer
- 72-byte addressing user-configurable registers
- Interrupt (IRQ) PIN
- Programmable timer
- Low jitter on-chip oscillator
- Ultra low power on-chip 3.3V regulator
Operating Condition
- Operating temperature: -40Ā°C to 85Ā°C
- Operating voltage:
- Receiver: 2.7V to 3.6V
- Transmitter: 2.7V to 5.5V
- Digital I/O: 2.7V to 5.5V
- Ā Power saving mode:
- Hard Power Down: 0.6uA
- Soft Power Down: 4.8uA
- Standby: 1.0mA
- Card Detection ā Sleep: 4.8Ī¼A
Package
- Small QFN 4x4mm 24-pin with heat sink pad
Applications
- Secure access control system
- Digital door lock
- Smart toy
- Handheld RFID reader
- Contactless payment system
RA12 Development Kit :
PI6BK200M10S112B1CB
DEVELOPMENT KIT SUPPORT MATERIAL
- Firmware Source Code (SIC4310-FU)
- Demo Android/iOS APP and Source Code
- Reference PCB Design and Schematic Diagram
- Reference Antenna and Antenna Design Tool
