Highlight Features

• Write/read through NFC smartphone or NFC/RFID reader device
• Direct data transfer from RFID to UART or vice versa
• Operating from either RFID power or external DC
• 3.3 V On-chip regulator for power harvesting mode
• Up to 10 mA source to power external circuit (Depending on harvested power from NFC/RFID reader device)
• Compatible with NFC Forum Tag Type 2
• ±2% 1.8432MHz on-chip factory-trimmed oscillator

Interface and Peripheral

• RF interface based on ISO/IEC  14443A - 106 kbps
• UART interface speed from 9600 to 115200 bps
• UART interface with hand-shaking option
• 8 programmable GPIOs
• Activity indicator pins
  • RF detect
  • RF Busy
  • Reserve Power Ready

Memory

• 228 bytes EEPROM accessible from RF and UART
• 196 bytes user memory
• EEPROM organization enabling NDEF format
• EEPROM erase/write cycle up to 100,000 times
• EEPROM memory retention up to 10 years at 70°C
• 2 x 64-byte deep FIFO for UART data transfer – TX/RX

Operating Condition

• Operating temperature from -40 to 85°C

Packages

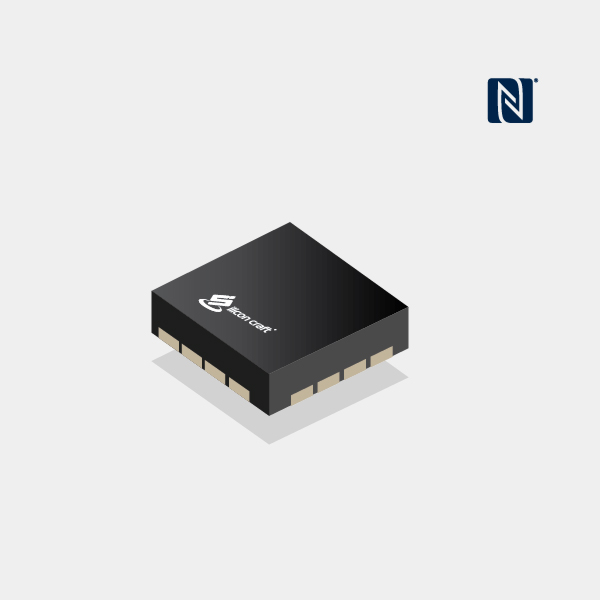

• QFN 3x3 - 16-Pin Package with Heat sink pad

Applications

• NFC energy harvesting module
• Firmware upgrade via NFC
• NFC bridge for embedded systems
• Metering/vending machines
• Smart home appliances
• Customized/proprietary system RFID

DEVELOPMENT KIT:

• SIC4310-HV Development Kit :
  P10CK081PB0S110D0CBA


• SIC4310-FU Development Kit :
  P10CSECR000SN10D1CB

DEVELOPMENT KIT SUPPORT MATERIAL

• Firmware Source Code (SIC4310-FU)
• Demo Android/iOS APP and Source Code
• Reference PCB Design and Schematic Diagram
• Reference Antenna and Antenna Design Tool
