SIC73WR
Low-Frequency Half-Duplex RFID Transponder with 80-bit programmable code
$3.70
Shipping: Approximatrly 30-45 days From Silicon Craft Technology, Thailand
SIC73WR
Low-Frequency Half-Duplex RFID Transponder with 80-bit programmable code
Low-frequency half-duplex (HDX) RFID transponder with an 80-bit programmable code for industrial applications. LF HDX RFID transponder operates at 134.2 kHz frequency band. It employs the same read/write command as other HDX transponders, thereby facilitating system expansion or product replacement.
Highlight Features
- Transponder in a wedge and glass tag shape package for industrial application
- Low-frequency HDX technology at 134.2 kHz field frequency
- Best-in-class read and write sensitivity
Interface and Peripheral
- ASK downlink data transmission
- FSK uplink at 134.2kHz/123.2kHz with RF/16 data rate
Memory
- 80-bit programable ID memory
- 720-bit extended user memory
- Memory erase/write cycle up to 100,000 cycles
- Memory retention up to 20 years

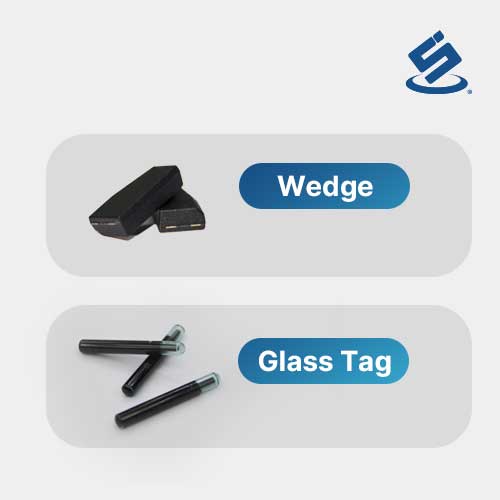

Package
- VDFN
- Wedge
- Glass Transponder 23 mm
- Glass Transponder 32 mm
Applications
- Access control system
- Asset management
- Vehicle identification
- Container tracking
- Waste management
